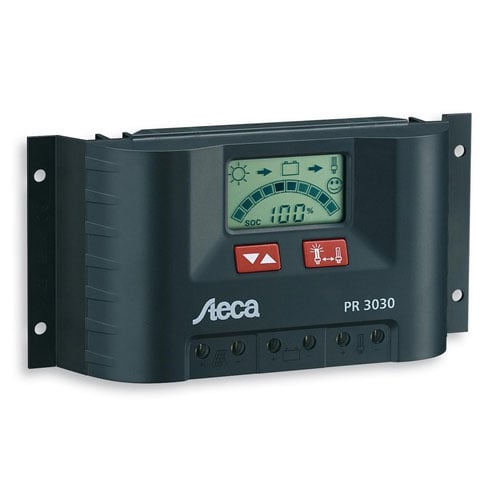

30A Battery Solar Charge Controller with LCD Display
£184.99 (ex. VAT)
£221.99 (inc. VAT)
Out of Stock
This controller is for off grid solar systems, with the added benefit of an LCD Display to provide information about the performance of your solar panels. The latest charging technologies, combined with a Steca-AtonIC state of charge determination which has been significantly improved once again, result in optimal battery maintenance and control of the module output of up to 900 Wp which can be connected to it. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.
Main Benefits
- LCD Display to provide intelligent information about the solar panel performance
- Battery reverse feed protection
- Overload protection
- Battery open circuit protection
- Lightning surge protection
- Deep discharge protection
- Charge current protection up to 30A
Please note all solar panels (except the 5W &10W) require a voltage regulator to ensure that the battery is not overcharged. We recommend the STSPR30 for installations up to 480watts.
The charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.
Technical Specifications
System voltage | 12 V (24 V) |
Own consumption | 12.5 mA |
Input | |
Open circuit voltage solar module | < 47 V |
Module current | 30 A |
Output | |
Load current | 30 A |
End of charge voltage liquid | 13.9 V (27.8 V);gel 14.1 V (28.2 V) |
Boost charge voltage | 14.4 V (28.8 V) |
Equalization charge | 14.7 V (29.4 V) |
Reconnection voltage (SOC / LVR) | > 50 % / 12.6 V (25.2 V) |
Deep discharge protection (SOC / LVD) | < 30 % / 11.1 V (22.2 V) |
Ambient temperature | -10 °C … +50 °C |
Terminal (fine / single wire) | 16 mm2 / 25 mm2 – AWG 6 / 4 |
Degree of protection | IP 32 |
Dimensions (X x Y x Z) | 187 x 96 x 44 mm |
Weight | 350 g |
