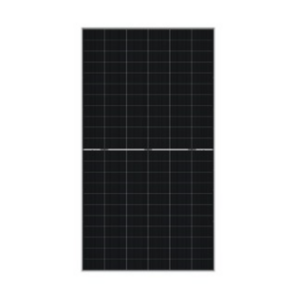

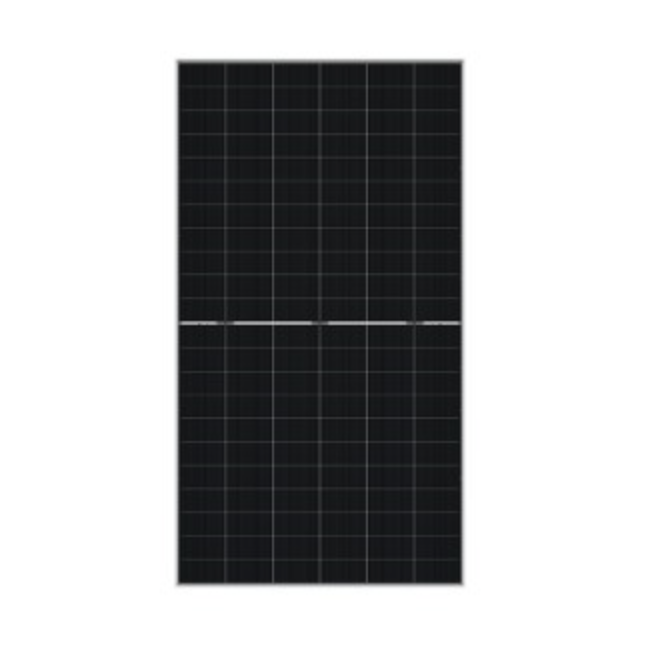

DMEGC Solar 705W Infinity 132 Cut Bifacial Dual Glass N-Type Monocrystalline Solar Panel

The DMEGC Solar 705W Infinity 132 Cut Bi-Facial Dual Glass N-type Mono Solar Module – Silver Frame/White Backsheet delivers utility-scale power in a single panel, letting EPCs and commercial installers drive down BOS costs and shorten project pay-back. Built on high-efficiency N-type half-cut cells, the module outputs 705 W (±3 %) with a front-side efficiency of 22.9 % and up to 80 % bifacial gain from the rear, extracting more energy per square metre on trackers or bright rooftops.

Encapsulated in 2 mm/2 mm heat-strengthened dual glass and framed in anodised silver aluminium, the panel endures 5400 Pa front / 2400 Pa rear loads—enough for heavy snow zones and high-wind coastal sites—while meeting IEC 61215, IEC 61730, salt-mist, ammonia and sand-abrasion tests.

Key Performance Advantages

• N-type low-degradation cells: < 1 % first-year loss and ≤ 0.4 % annual degradation give 87.4 % of nameplate after 30 years.
• 132 half-cut layout: reduced series resistance and hot-spot risk improve field reliability.
• Large-format design: 2384 × 1303 × 33 mm footprint packs 705 W into fewer strings, reducing cable, tracker and foundation costs.
• Low-temp coefficient: –0.29 % / °C for Pmax maintains output on hot summer days.
• Dual-glass safety: no polymer backsheet means lower fire risk, minimal PID and full recyclability at end of life.

Project Benefits

• Higher IRR – 705 W nameplate and bifacial boost cut LCOE and land-use ratios.
• Fewer mounting equipment requirements – larger power per panel reduces mechanical balance-of-system spend.
• Green credentials – PFAS-free, low-carbon manufacturing supports ESG-driven bids.
• Proven bankability – backed by Hengdian Group’s 40-year manufacturing heritage and TÜV Rheinland extended-stress certification.
