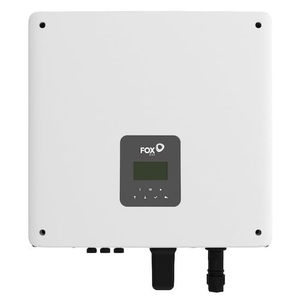

Fox ESS H1 G2 5.0kW Hybrid Inverter (Single Phase)

This H1 G2 5.0kW single phase hybrid inverter from Fox ESS can be used alongside any of the Fox EP Battery Modules.

Features

• Comes with a WiFi dongle. LAN and 4G dongles are also available.
• CT clamp supplied. Modbus meter optional for preference or if the distance from inverter to grid supply exceeds 30m.
• EPS (Emergency Power Supply) inbuilt. Homeowners can keep the power on during power cuts with no effect to the inverter’s output power.
• IP65 protection rating. These inverters, along with their ECS batteries, can be installed outside saving space in the home.
• Natural cooling means no noisy fans and so this FOX ESS inverter really stands out as one of the best in its class.




DC Attributes

Max PV power: 7500W

Max Input Current: 16A
Max Input Voltage: 600V

Start up voltage: 75V

No. of MPPTs: 2
MPPT Range: 80 – 500V
