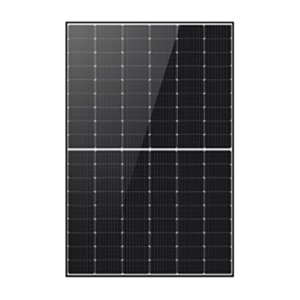

Longi Hi-Mo X10 540W HPBC, N-Type, Black Framed Monocrystalline Solar Panel

LONGi Solar 540W Hi-MoX10 HPBC + N-type Mono Solar Module (LR7-60HVH-540M) is a high-efficiency, high-output module designed to help installers get more energy from limited roof space while simplifying string design and installation. With a rated output of 540W and a module efficiency of around 23.9%, this Hi-MO X10 module delivers exceptional power density in a compact, installer-friendly format.

Built on LONGi’s TaiRay wafer and high-performance back-contact (HPBC) N-type cell technology, the LR7-60HVH-540M is engineered for strong energy yield and long-term reliability. N-type cells typically offer lower degradation and excellent performance under real-world conditions, helping end customers maximise lifetime kWh from each string and giving installers confidence when designing long-lasting systems. The module operates at a maximum system voltage of 1500V DC, with a 25A maximum series fuse rating, supporting modern high-voltage string designs for residential and commercial rooftops.

Longi Solar is one of the largest silicon producers in the world and a specialist in mono-crystalline cell and panel manufacturing.

Electrical Specifications

Peak Power: 540W

V_{mpp: 37}.11V

V_oc: 44.88V

I_{mpp: 15}.25A
I_sc: 14.5A

System Specifications

Weight: 26 kg

Dimensions: 1,990mm x 1,134mm x 35 mm

Product warranty: 15 years

Warranty on output: 25 years
Efficiency: 23.9%
Product code: LR7-60HVH-540M

Shipping Information
This panel is too large to be placed on a tail lift. It also can’t be double stacked in a standard lorry.

As such a a fork lift truck on site is required to offload these modules, or they will have to be offloaded by hand.  Please be aware that each panel is a two man lift, and may be difficult to handle in heavy winds.
