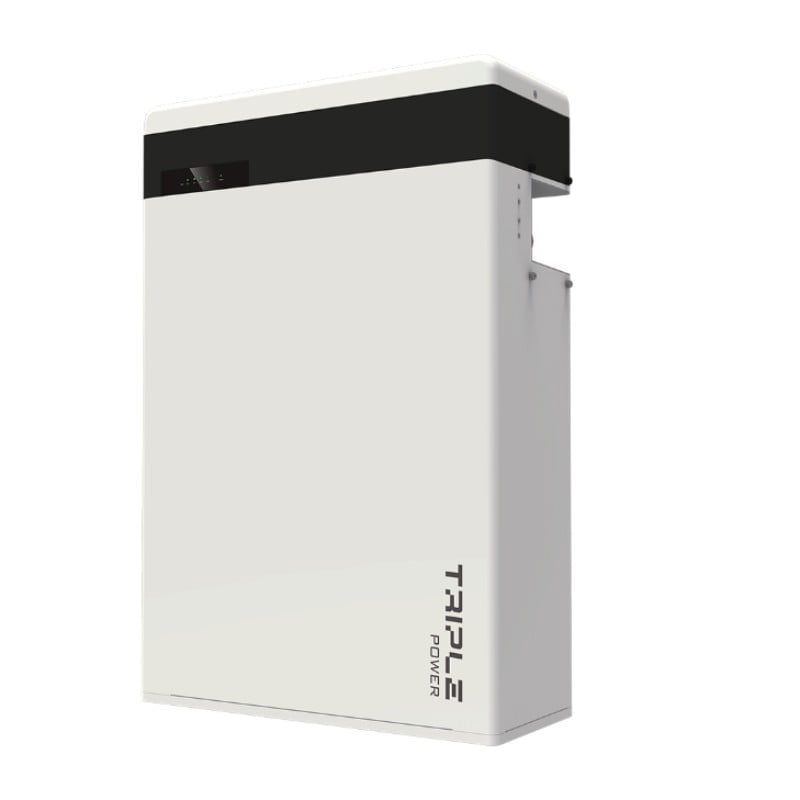

SolaX Triple Power 5.8kWh Battery Module – TP58 V2.2 (Master Console)

Triple Power encompasses the very latest in LFP technology which ensures much safer installations with wider temperature tolerances. With a 10-year warranty and 90% depth of discharge, the new Triple Power battery is a flexible, practical, high-performance energy storage solution.

In order to scale the system and have it operating effectively this Master console Battery Module with an integrated battery management system (BMS) is connected to SolaX Triple Power 5.8kWh Battery Module – TP58 V2.2 (Slave Consoles) that it controls.

Please ensure that all systems bought have a Master console for effective compatibility with inverters.

Version 2.2 Features

• Nominal capacity: 5.8 kWh
• Usable capacity: 5.2 kWh
• Depth of discharge (DoD): 90%
• Max power: 4 kW
• Round trip efficiency: 95%
• Operating voltage range: 100 – 131V
• Max Charge/discharge current: 35A
• Cycles: >6,000
• Dimensions: 474 x 193 x 708 mm
• Weight: 72.2 kg
• IP65 protection grade
• 10 year warranty
