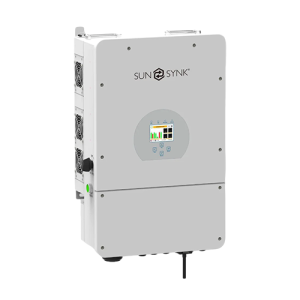

Sunsynk MAX 16kW Single Phase Hybrid Inverter (integrated Wifi)
£1,995.00 (ex. VAT)
£2,394.00 (inc. VAT)
Out of Stock
The Sunsynk 16kW Single Phase hybrid inverter is the biggest addition to Sunsynk’s low voltage (48V) single-phase inverter range.
It’s suitable for off-grid, grid support, backup, and self-consumption PV systems and can also be used in both three-phase and single-phase parallel applications.
In terms of functionality, compatibility, and related accessories, it’s similar to the 5kW & 8kW units but particularly suited to large domestic and small commercial installations.
“It’s the biggest single phase all-in-one inverter with everything built in, in the world”, Keith Gough, Sunsynk CEO.
Additional features:
- A total of 15x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW
- Three inverters can be connected in a single-phase configuration giving a total power of 48kW
- Contains 3x MPPTs to allow for flexible PV array designs and improved efficiency
- Programmable multiple operation modes: on-grid/off-grid & UPS
- IP65 protection rating
- Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
- Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedomwon and Kodak (BL3.6)

Important Considerations
– Installations with Sunsynk products need to be registered to gain full activation of the warranty.
– Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.
– When carrying out firmware updates, ensure that the inverter is on bypass mode and the PV is off. Failure to do this may damage your inverter.
