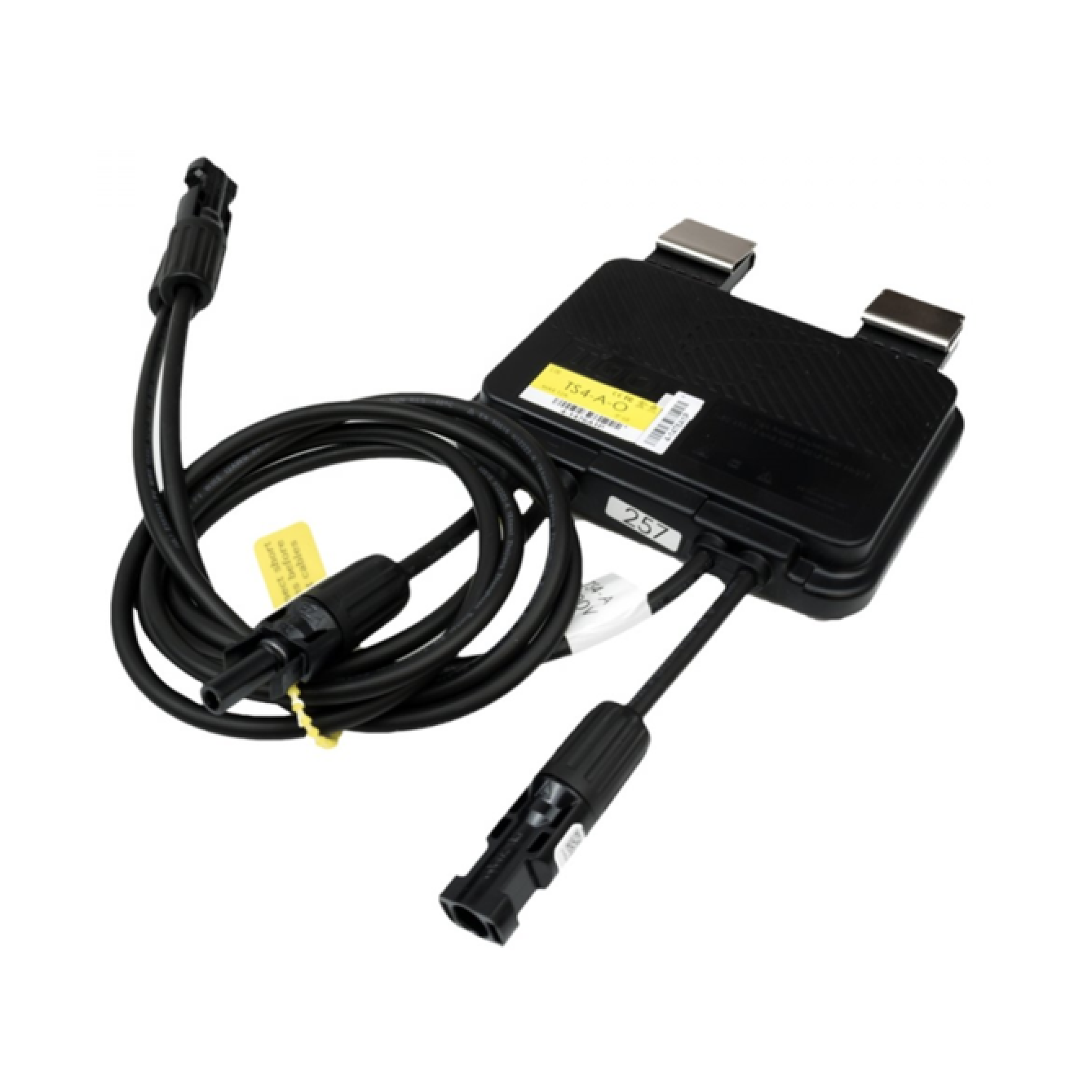

Tigo DUO Frame Mounted Optimiser TS4-A-O-DUO

The TS4-A-O-Duo is an add-on or retrofit solution that brings smart module functionality to standard PV modules, adds smart features to new PV installations, or upgrades under-performing systems. The Duo cover with UHD-Core technology and expanded specifications supports two PV modules connected in series with a combined power of up to 700W.

This revolutionary optimiser from Tigo works with any panel and any inverter. You you can use as few as one optimiser on a system – ideal if you have a couple of shaded panels or on another orientation. Only those panels that are shaded, or those on a separate roof, need to be optimised and can be mixed in a string with non-optimised panels.

The TS4-A-O-Duo clips tightly onto the frame of the module and connects using MC4s.

Tigo Specifications

• Rated DC Input Power: 700W
• Maximum Input Voltage: 90V
• Maximum Continuous Input Current (I_MAX): 12A
• Weight: 0.56Kg
• 25 Year Warranty

* If installing Tigo Monitoring with a mix of singles and duos then you will need to email Tigo customer support to let them know to adjust the monitoring.
