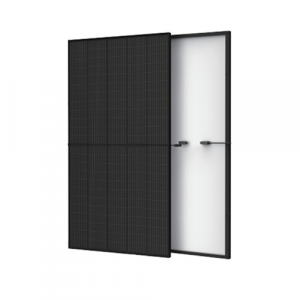

Trina Vertex 385W All Black Monocrystalline Solar Panel

Vertex S is Trina solar’s latest PV module product for fast growing non-utility customers which carries cutting-edge Vertex Platform technology.

Based on Trina Solar’s superior multi-busbar technology, the Vertex S modules incorporates an innovative design that integrates 1/3 split cell, non-destructive cutting and high-density interconnect technologies. Due to dedicate design for residential and C&I applications, the new Vertex S series unlocks huge potential for reducing balance-of-system costs further.

Specifications:

Peak power Wp 385W
Voltage at peak power Vmp: 33.8V
Max open circuit voltage Voc: 40.8V
Current at peak power Imp: 11.54A
Max short circuit current Isc: 12.14A
Weight: 21.5kg
Dimensions: 1,754mm × 1,096mm x 30mm
Half-Cell layout (120 monocrystalline)
Product warranty: 15 years
Warranty on output: 25 years (linear)
