4kW (4000W) Hybrid Solar Power Kit with 4.8kWh Battery Storage with Adjustable Ground Mounts
£5,229.99 (ex. VAT)
£6,275.99 (inc. VAT)
What is a Hybrid Solar Power Kit?

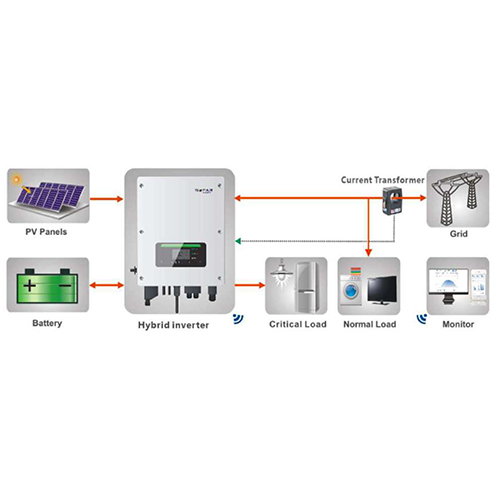

A Hybrid Solar Kit is the integration of Solar Power, energy storage and grid energy.
Using a Hybrid Solar System, any surplus energy generated from the solar panels during the day will be used to charge the batteries, allowing the use of this energy later in the day when the solar panels aren’t generating. This allows the utilisation of energy generated from the photovoltaic system rather than drawing from the grid during peak times. The Hybrid Kit is also intelligent, with built-in export limitation and AC output limitation in response to grid frequency and voltage extremes.
Monitoring of the Solar Energy production and battery activity is clear and simple using the easy-to-read LCD display on the unit or through the user-friendly app via a web browser or mobile device.
The Hybrid Solar Kit also offers emergency electricity backup in power cuts.
What is included in a Hybrid Solar Kit?
4kW (4000W) Hybrid Solar Power Kit with 4.8kWh Battery Storage Specifications
16 x 250W MCS certified polycrystalline Solar Panels
(Individual solar panel dimensions are approximately 1640mm x 992mm x 35mm)
1 x SoFar HYD 3600-ES Hybrid Inverter
2 x Pylon 2.4kwh US2000 Plus Li-ion Batteries
1 x CT Clamps & Comms and Power Cables Pack
1 x White Battery Cabinet
1 x Chint NC1-2508 Contactor for Sofar EPS mode
1 x 50M 4mm Black PV Cable
1 x MC4 Connector (4 Pairs)
32 x Adjustable Metal A-Frames (min 15° degrees / max 43° degrees)
2 x 20A, 3 Pole, Lockable, AC Isolators
1 x DC Isolator 1000vdc 32A 4 Pole
1 x MCS Certified Single Phase Generation Meter
1 x Solar Warning Labels Sheet
1 x Battery Hazard Warning Label Pack
1 x Warranty and Certification Document Pack
Hybrid Solar Kit Technical Specifications
The 4kW (4000W) Plug-in Solar kit is supplied with 16 x 250W MCS certified solar panels. Each solar panel has a 10 year manufacturer’s warranty and a 25 year 80% power performance guarantee.
Ground Mount Kit

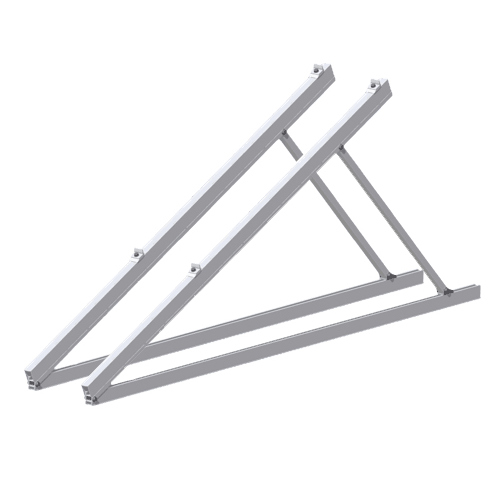

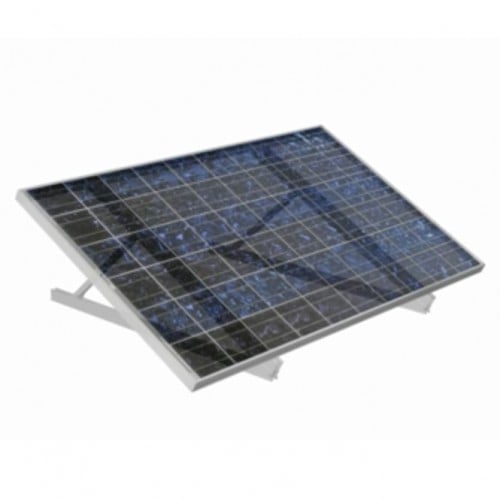

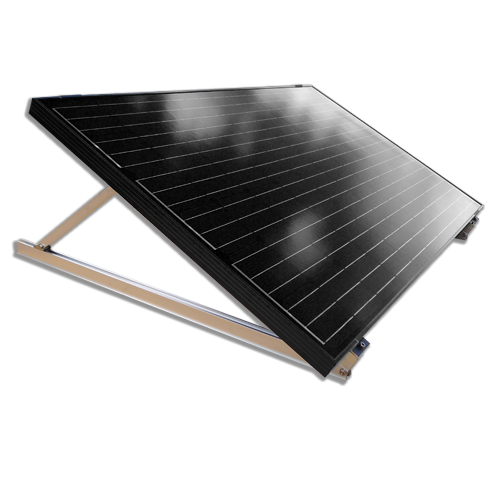

The 4kW (4000W) Plug In Solar Kit is supplied with 32 x adjustable landscape metal A-frames, which support the module and can be adjusted between 15 and 43 degrees. These are warrantied for 10 years.
SoFar SoFar HYD 3600-ES Hybrid Inverter
Max PV: 4000W
Max. DC Power for single MPPT: 2400W
Max. DC Input V: 600V
Max. Input/Output Current: 16A
Max charge/discharge: 3000W
Max efficiency: 97.6%
IP Protection class: IP65
Dimensions: 566 x 394 x 173mm
Warranty: 5 years
Pylon 2.4kwh US2000 Plus Li-ion Battery
Nominal Voltage (V): 48V
Nominal Capacity (Wh): 2400Wh
Usable Capacity (Wh): 2200Wh
Dimension (mm): 440 x 410 x 89mm
Weight (kg): 24kg
Discharge Voltage (V): 45 – 54
Charge Voltage (V): 52.5 – 54
Charge/ Discharge Current (A): 25A (Recommended) | 50A (Max) | 100A (Peak @ 15s)
Communication Port: RS232 | RS485 | CAN
Working Temperature (C): 0 – 50C
Shelf Temperature (C): -20 – 60C
Authentication Level: TÜV | CE | UN38.3
Design Life: 10+ Years (25C)
Cycle Life: >4500 (25C)
