Plug-In Solar 3.75kW (3750W) New Build Developer Solar Power Kit for Part L Building Regulations
£3,499.99 (ex. VAT)
£4,199.99 (inc. VAT)
This Plug-In Solar kit has been specifically assembled to help developers meet Part L Building Regulations and SAP (Standard Assessment Procedure) calculations for new builds/self builds/offices/conversions or extensions in the UK.
The installation of renewables, such as solar energy, in new build housing across Scotland is helping building developers meet demanding new building regulations, specifically Standard 6.1. Using a Plug-In Solar New Build Kit to meet these new Scottish regulations is a simple solution, that can also add value to new homes.
Plug-In Solar kits, such as this one, contain EVERYTHING you need to complete your own Solar PV installation WITHOUT the need for a dedicated installation team.*
Our kits include ALL the G98 documentation required to commission your installation with your local DNO, as well as step by step instructions on the process. All components comply fully with the G98 requirements and have MCS certifications.
Electricity Generation and Carbon Dioxide Savings
With a 3.75kW (3750W) Plug-In Solar Kit, it is estimated that you will generate 3878kWh per year. The carbon dioxide savings are estimated to be around 1753.13 kgCO2 per year.**
The Plug-In Solar Advantage
With standard Solar PV kits, electricity generation is dependent on the panel that is performing the worst. These types of systems will will not perform well with panels that are oriented in multiple directions or if panel shading is an issue.
Our Plug-In Solar Kits use Micro-Inverters to take full advantage of the production capability of each individual solar panel, regardless of shade or orientation to the sun. This ensures each panel can produce the maximum power and is not affected by the performance of another panel in the array.
The Plug-In Solar System is flexible, and modular so you can design a kit to fit your current budget and energy needs, and expand it later as you wish. The system is completely modular, meaning if you want to add more panels, or a solar battery, this can be simply achieved.
Plug-In Solar Kits are also Energy Storage Ready, meaning a battery system can easily be added to our kits using the Enphase AC Battery Storage Module.

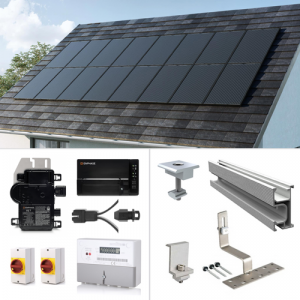

What is included in a Plug-In Solar Kit?
Plug-In Solar 3.75kW Tile/Slate Roof Mount New Build Solar Kit Specifications
14 x MCS certified polycrystalline Solar Panels (275W minimum) – Please ask us for a quote for panel upgrades.
(Individual solar panel dimensions are approximately 1640mm x 992mm x 35mm)
14 x G98 certified Enphase IQ7 Micro-Inverters

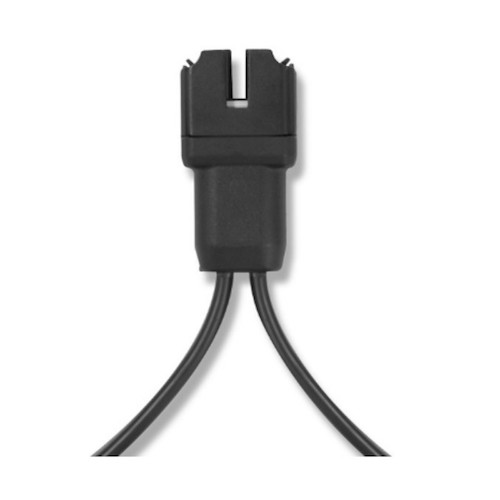

14 x Enphase Q Cables
2 x Enphase Branch Terminators (End Caps)
1 x Enphase Envoy Monitoring Unit
1 x Roof Mount Kit for Tile or Slate Roof (please specify your type of tile/slate when placing your order)
4 x 20A, 4 Pole, Lockable, AC Isolators
1 x MCS Certified Single Phase Generation Meter
2 x Warning Labels Sheets
1 x Warranty and Certification Document Pack (via email)
1 x Plug In Solar Installation Manual (via email)

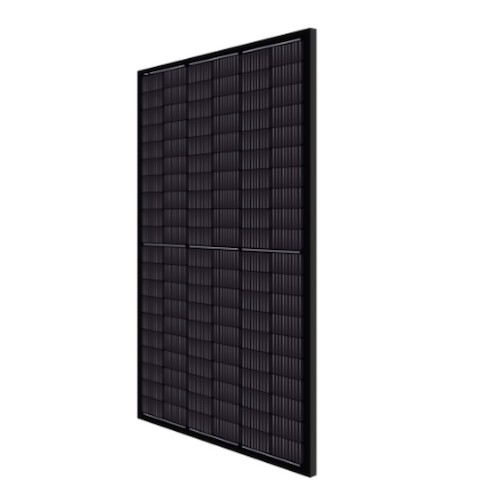

The Solar Panel
The 3.75kW (3750W) Plug-in Solar New Build / Developer kit is supplied with 14 x MCS certified 270W solar panels. Each solar panel has a 10 year warranty and a 25 year 80% power performance guarantee.
The Enphase Micro-Inverter
This Plug In Solar Kit is supplied with G98 certified Enphase IQ7 Micro-Inverters. The Micro-Inverter converts direct current (DC) produced by the solar panels into alternating current (AC) for use in your home. As such, it forms the heart of the Plug-in Solar Kit. The Enphase Micro-Inverter has a 25 year manufacturer guarantee.

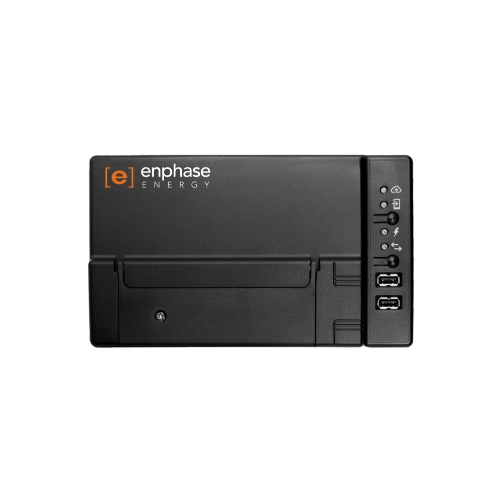

The Enphase Envoy Gateway Monitoring Unit
The Enphase Envoy is an integral component of the Enphase Microinverter System, and is required for all Plug-In Solar Kits over 800W, in order to ensure compliance with the UK’s G98 Regulations. The Enphase Envoy allows you to monitor each individual solar panel in your installation, via the Enphase Enlighten App. More information about the Enphase Envoy can be seen here: Enphase Envoy

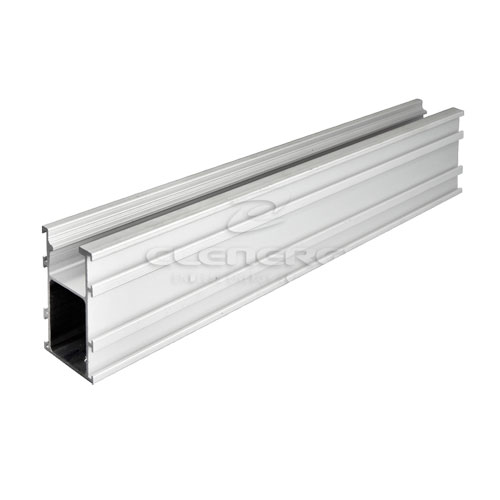

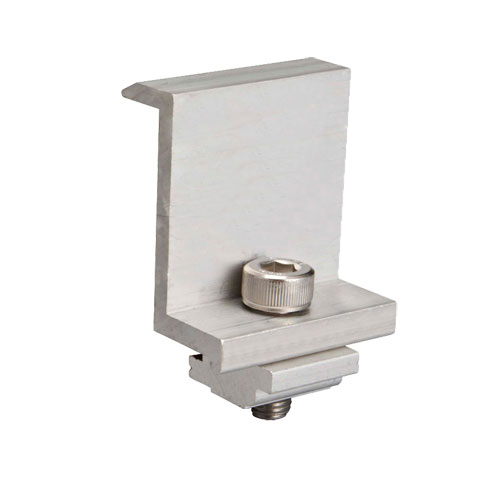

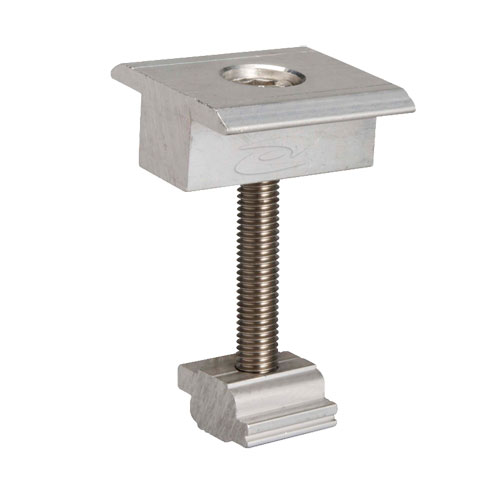

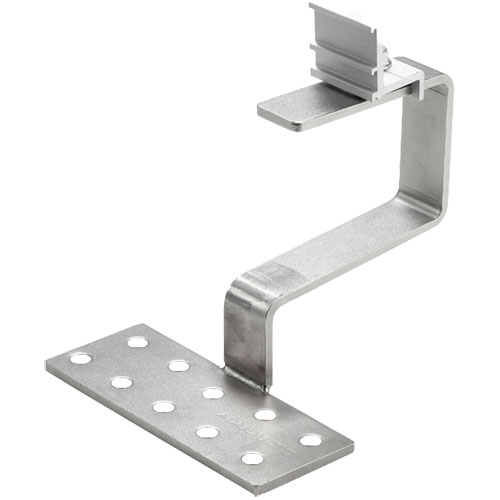

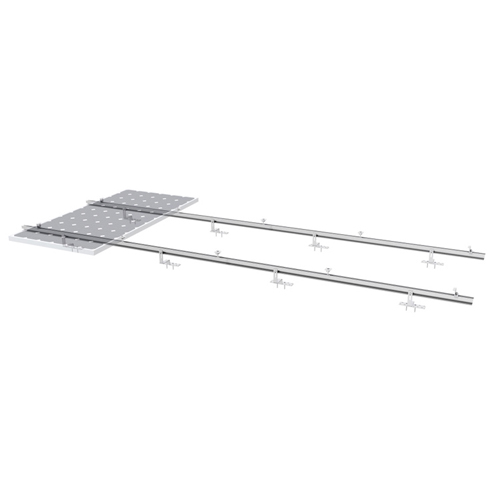

The Tile/Slate Roof Mount Kit
This Plug In Solar Kit comes with a simple to install roof mounting kit to allow you to fix to a Garage, shed, house, stable or any other outbuilding with a tiled or slate roof. These are warrantied for 10 years. Please let us know the type of Tile/Slate you have on your roof at the time of placing an order.

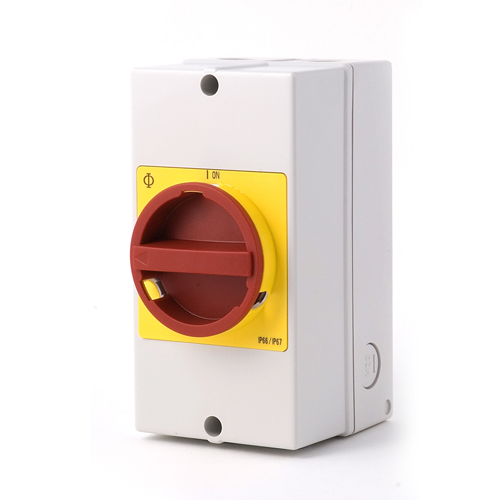

The AC Isolator
The 3.75kW (3750W) Plug-In Solar Kit includes four, 4-Pole, 20AMP, Lockable Isolator AC Isolators designed for Solar Installations.

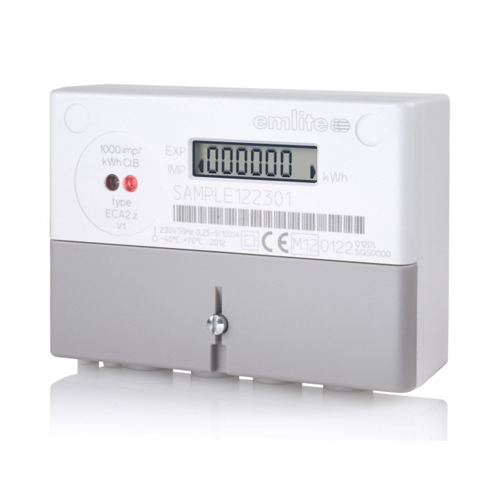

The Generation Meter
The 3.75kW (3750W) Plug-In Solar Kit includes an MCS Certified Single Phase Generation Meter to allow you to monitor the energy generation of your solar installation.
All components within the Plug In Solar kit comply fully with the G98 requirements and have MCS certifications, where applicable. All certifications/warranties available on request.
Please view the Downloads section for information on the fitting of this Plug-In Solar Kit.
Can I upgrade my Plug-In Solar Kit?
All of our kits are available for upgrade to a higher wattage solar panel. Please see our Solar Panel Page for available Solar Panels. Please email us for a bespoke quotation for this kit with the upgraded solar panels you have chosen.
You can also add solar energy battery storage to this Plug-In Solar kit by adding an Enphase AC Battery Storage Module. These are modular battery units that can be daisy chained in order to achieve the storage capacity you require.
If you have any other bespoke requirements for this kit, please contact us, we will be happy to accommodate your needs.
*A qualified electrician will be required to sign off the electrical side of the installation for all new builds and self builds.
**Calculations undertaken using the JRC European Commission PV potential estimation utility: http://re.jrc.ec.europa.eu/pvgis/apps4/pvest.php and the Energy Saving Trust cost and saving facility: http://www.energysavingtrust.org.uk/domestic/solar-panels.
The Solar Panels, Micro-Inverters, mounts and fixings supplied with your kit may not match those shown in the photographs but will be of an equal or better standard.
Installations are undertaken at your own risk. The Installation manuals provided are to be used as a guide only, and your discretion must be used when installing the Plug In Solar product. Plug In Solar take no responsibility for incorrect installation of our product.
